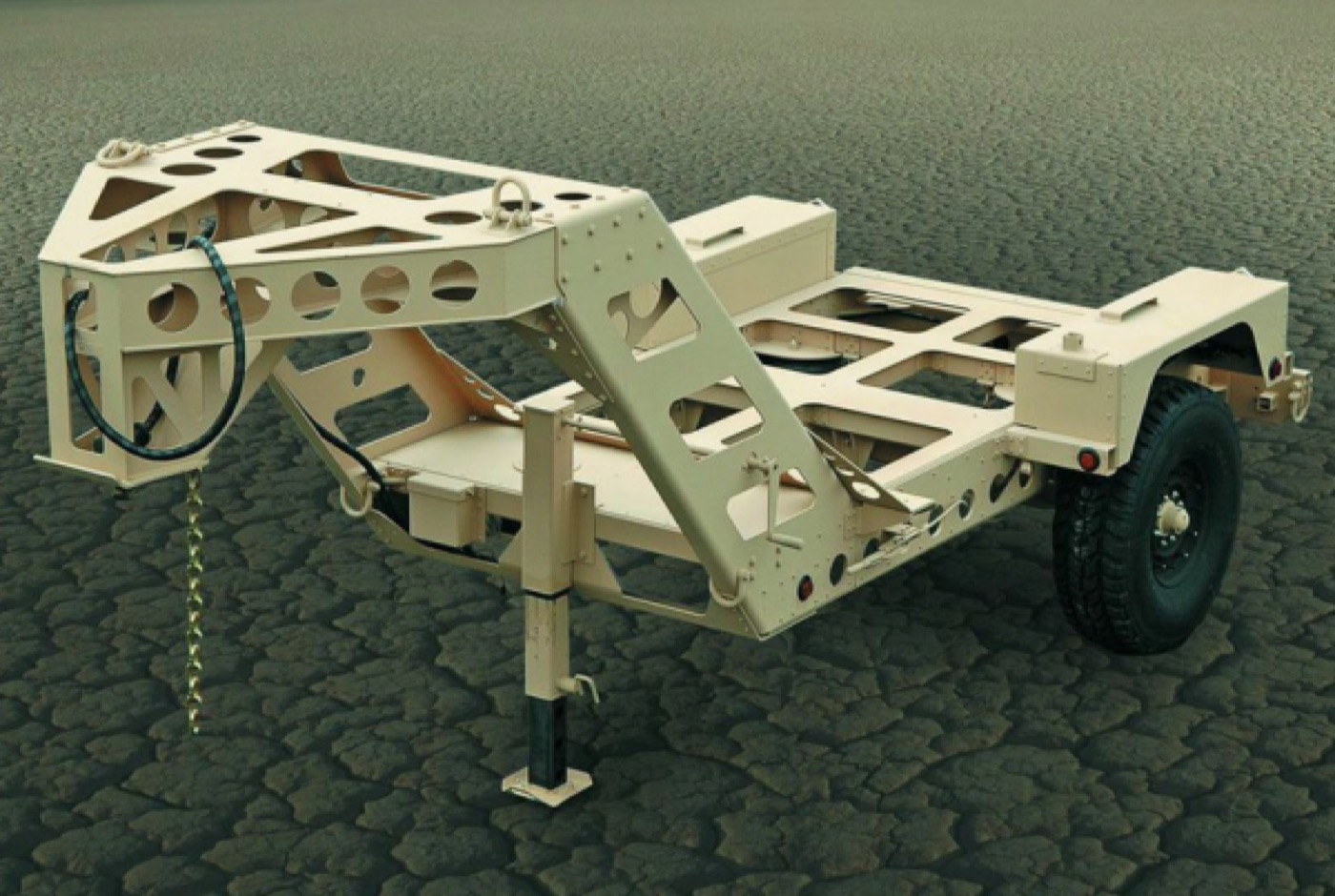

Silver Eagle Fifth Wheel FTT
Heavy specialty haul, geometry-first.
A fifth-wheel platform engineered for oversize industrial equipment, modular shelters, and field-deployable freight where structural margin matters more than deck length.
AWS D1.1
certified welds
Side-pull
kingpin geometry
100%
in-house build
Where the FTT fits
When the freight does not respect a standard trailer.
Specialty heavy haul punishes commodity trailers. The deck flexes. The tie-downs slip. The structural margin runs out in the middle of a duty cycle the supplier never specified for.
The Silver Eagle Fifth Wheel FTT is engineered around the freight you actually haul — by an engineering team that walks the design across the same factory floor that builds it.
How it's engineered
DECK DEFLECTION
Gusseted, plated, tied directly into the chassis.
Deflection stays in spec where commodity trailers begin to walk. We size the deck to the load profile, not to a brochure number.
KINGPIN GEOMETRY
Side-pull and visual indicator, scaled up from the dolly line.
The same hookup discipline we engineered into our converter dollies translated up to the fifth-wheel scale. Cleaner hookups, fewer mis-pin incidents, fewer comp claims.
LOAD-PROFILE TUNING
Tie-down and recessed track positions built around your load.
Engineering does not stop at the spec sheet. Mounting positions, structural reinforcement, and securing geometry are all tuned to the actual freight before fabrication starts.
Trusted by
The country’s largest parcel fleet, the U.S. Army, and a long list of food and beverage operators have pulled Silver Eagle equipment for decades.
Built for
- Oversize industrial equipment haul
- Modular shelter and field-deployable platform transport
- Heavy specialty freight on routed and off-route duty cycles
- Operations that need fifth-wheel-scale structural margin
- Custom deck geometry tuned to the load
- Silver Eagle in-house finishing in fleet color
Engineering data
Technical specifications.
- Maximum Vehicle Weight
- 7,000 lb (3175 kg)
- Curb Weight
- 2,100 lb (953 kg)
- Maximum Payload Capacity
- 4,900 lb (2223 kg)
- Overall Length
- 197.0 inches (500 cm)
- Overall Width
- 85.0 inches (216 cm)
- Overall Height
- 84.0 inches (213 cm)
- Track Width
- 72.5 inches (184 cm)
- Drawbar Length
- 152.6 inches (388 cm) - from axel center to kingpin center
- Kingpin Height
- 60.0 inches (152 cm)
- Deck Height
- 36 inches (86 cm)
- Ground Clearance
- 16.2 inches (41 cm)
- Suspension Type
- Fully independent trailing arm air-ride suspension featuring a field-replaceable wheel spindle
- Spring Media
- Tubular steel Progressive rate commercial Class 8 truck air bags Adjustable
- Shock Absorbers
- High performance remote reservoir
- Wheels
- 16.5 X 8.25, two piece steel HMMWV compatible 8 on 6.5 inch bolt pattern
- Tires
- 37X12.50R16.5 Goodyear Military Wrangler M/T 30-mile run flat inserts, HMMWV compatible
- Brakes
- Proprietary microprocessor controlled electric-over-hydraulic brake actuator Specifically designed for 24V military systems with blackout capability 12 inch x 2 inch free backing hydraulic drum brakes with automatic breakaway actuation Independent lever-operated left and right side mechanical parking brakes
- Electrical System
- 12/24 Volt DC sealed lighting system with blackout convoy lights 12 pin connector plug mates with STABLE 5th Wheel System Onboard battery for brake controller actuation and breakaway capability
- Max Speed
- Primary Roads: TBD Secondary Roads: TBD Off-Roads: TBD
- Departure Angle
- 40 degrees
- Turning Angle
- 90 degrees
- Fording
- Limited only by customer configuration
- Stabilizing Attachment
- Utilizes Silver Eagle’s patent-pending STABLE fifth wheel pallet centered over rear axle
Spec your FTT
Sized to the freight, backed by the floor.
Tell our engineering team the freight and the duty cycle. We’ll size the FTT to it.
